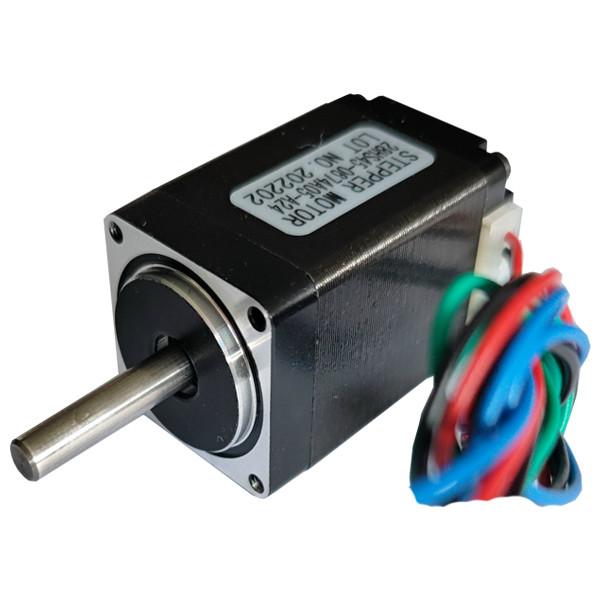

1.8deg 2phase Nema 11 Hybrid Stepper Motor 28mm Electrical 28byg

Product Categories
Changzhou Jinsanshi Mechatronics Co., Ltd
Contact Now

1.8deg 2phase Nema 11 Hybrid Stepper Motor 28mm Electrical 28byg

  • 1
  • 2
  • 3

Brand Name : JSS-MOTOR

Model Number : 28HS45

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Delivery Time : 1-20days

Packaging Details : carton

Phase : 2

length : 45mm

Current : 0.6A

Shaft : 5mm

torque : 0.95N

Weight : 0.14kg

Contact Now

1.8deg 2phase Nema 11 Hybrid Stepper Motor 28mm Hybrid Stepper Electrical Motor 28byg

Products are widely used in lithium equipment, CNC machine tools,

Laser equipment, wire equipment, labeling equipment, dispensing equipment and

Medical equipment, etc.

The motor features

Step Angle :1.8°

◆ Frame number :28.

◆ Keep torque: 0.45-1.2N.m

In pieces the big moment

Pieces of low fever

◆ High stability

◆ High consistency

Model No. Step Angle(°) Rated Voltage(V) Rated Current(A) Phase Resistance(Ω) Phase Inductance(mH) Holding Torque(Kg.cm) Motor Length(MM) Lead Wires No. Motor Weight(Kg)
28HS32-0674 1.8 3.88 0.67 5.8 3.2 600 32 4 0.11
28HS45-0674

1.8

4.56

 0.67 6.8 4.9 950 45 4 0.14
28HS45-0956 1.8 3.4 0.95 3.4 1.2 750 45 4 0.14
28HS51-0674 1.8 3.2 0.67 9.2 7.2 1200 51 4 0.2
28HS51-0956 1.8 4.4 0.95 4.6 1.8 900 51 4 0.2

1.8deg 2phase Nema 11 Hybrid Stepper Motor 28mm Electrical 28byg


Product Tags:

Nema 11 Hybrid Stepper Motor 28mm



Electrical Hybrid Stepper Motor 28byg



1.8deg 2phase Stepper Motor


Quality 1.8deg 2phase Nema 11 Hybrid Stepper Motor 28mm Electrical 28byg wholesale
