2 Phase Nema 23 Closed Loop Stepper Motor 2Nm Hss57 With 3M Cables

Name: 2 Phase Nema 23 Closed Loop Stepper Motor 2Nm Hss57 With 3M Cables
Brand: JSS-MOTOR
Price: 1 USD

Quality 2 Phase Nema 23 Closed Loop Stepper Motor 2Nm Hss57 With 3M Cables wholesale

Brand Name : JSS-MOTOR

Model Number : 57HSE2N-D25

Certification : CE ROHS

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Delivery Time : 1-20days

Packaging Details : carton

Phase : 2

length : 76mm

Current : 4.2A

Shaft : 8mm

torque : 2N

Weight : 1.15kg

Contact Now

2 Phase Nema 23 Closed Loop Stepper Motor 2Nm With Hss57 Nema23 Driver And 3M Cables

A closed-loop step motor system combines the advantages of servo motor and stepper motor technologies. Functionally, a closed-loop stepper motor system will run much more smoothly and with less resistance than a standard stepper motor setup. Since a closed-loop system provides feedback and control as well as short transient and free oscillation times, the closed-loop system will not lose or gain steps.

The motor features

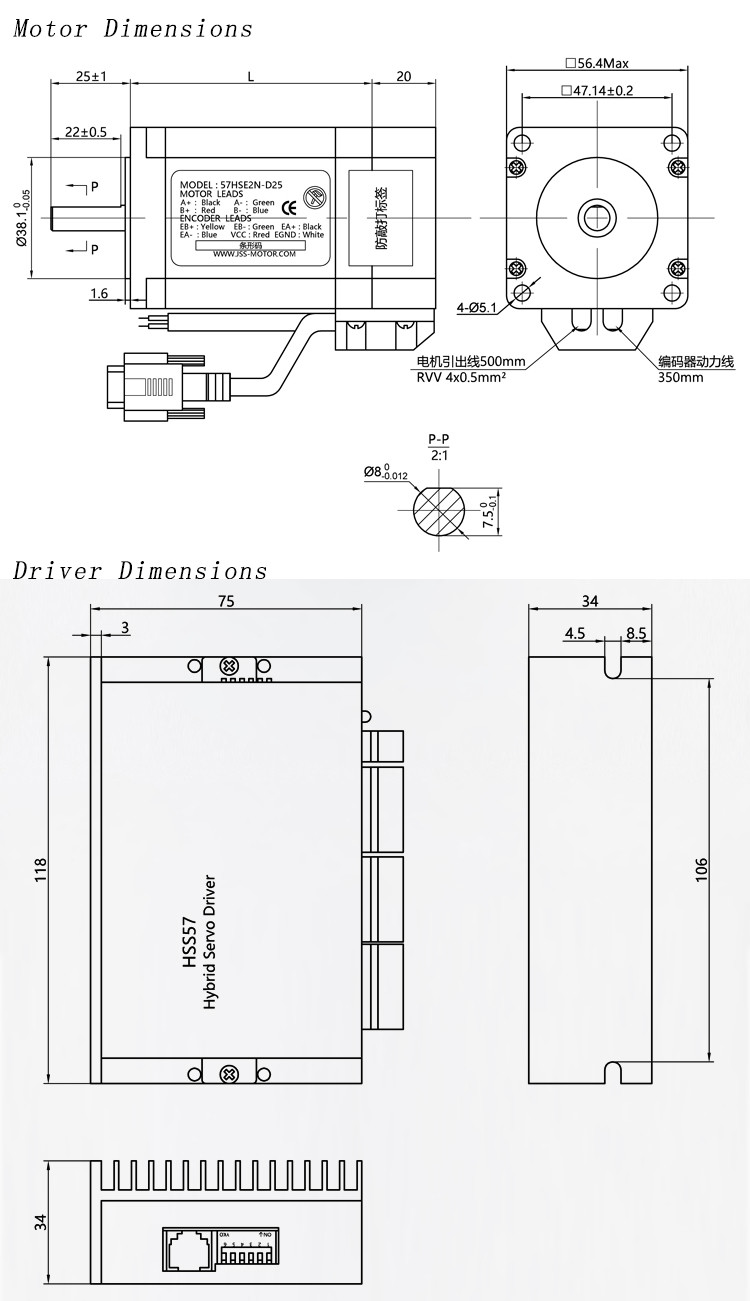

Frame Size: 57*57mm
Body Length:76mm
Shaft Diameter: Φ8mm
Shaft Length: 25mm
D-Cut Shaft Length: 22mm
Lead Length:500mm
Weight: 1.15kg

Model No.	Step Angle(°)	Rated Current(A)	Phase Resistance(Ω)	Phase Inductance(mH)	Holding Torque(N.m)	Motor Length(MM)	Lead Wires No.	Motor Weight(Kg)
57HSE2N-D25	1.8	4.2	0.5	1.8	2	76	4	1.2
57HSE3N-D25	1.8	4.0	0.7	3.0	3	112	4	1.8
