Product Description
Application
(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.
General specification:
| Step Angle | 1.8° |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃ Max∼+50℃ |
| Insulation Resistance | 100M ΩMin.,500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Asial Force | 60N
|
Electrical Specifications:
| Model No. | Step Angle (°) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Holding Torque (kg.cm) | Rotor Inertia (g.cm²) | Detent Torque (g.cm Max) | Motor Length (mm) | Lead wires No. |
| 86hs65-3004 | 1.8 | 3.3 | 3 | 1.1 | 28 | 1000 | 800 | 65 | 4 |
| 86hs68-4004 | 1.8 | 1.3 | 4 | 0.33 | 35 | 1200 | 1000 | 68 | 4 |
| 86hs78-4004 | 1.8 | 1.5 | 4 | 0.38 | 35 | 1400 | 1200 | 78 | 4 |
| 86hs78-4204 | 1.8 | 1.9 | 4.2 | 0.45 | 45 | 1400 | 1200 | 78 | 4 |
| 86hs78-6008 | 1.8 | 3.0 | 6 | 0.5 | 45 | 1400 | 1200 | 78 | 8 |
| 86hs82-4504 | 1.8 | 1.4 | 4.5 | 0.32 | 45 | 1500 | 1300 | 82 | 4 |
| 86hs82-5608 | 1.8 | 2.0 | 5.6 | 0.35 | 50 | 1500 | 1300 | 82 | 8 |
| 86hs100-5004 | 1.8 | 2.5 | 5 | 0.5 | 68 | 2100 | 2000 | 100 | 4 |
| 86hs100-5008 | 1.8 | 2.5 | 5 | 0.5 | 65 | 2100 | 2000 | 100 | 8 |
| 86hs156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 120 | 4000 | 3600 | 156 | 4 |
| 86hs156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 122 | 4000 | 3600 | 156 | 4 |
Product Description
Installation Size: Wiring Diagram:
(Unit=mm)
L1 and L2 can be customized according to customers' requirements.

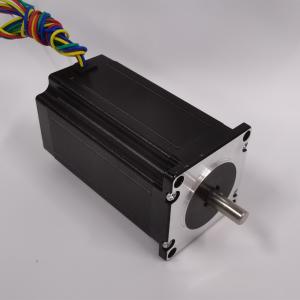

Picture of real products
Different specification of stepper motor with competitive price for your choice:
Contact me :
WhatsApp: +86 18306110590
Phone: +86 18306110590
Packaging & Shipping
We have standard package for our products. We can also make it as per your special requirements.
Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.
Certifications:
