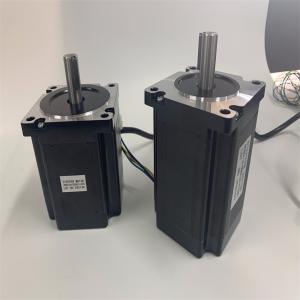

Higher Torque 12nm 86HS156-6204A Nema 34 Stepper Motor 2 Phase Hybrid Stepper Motor
It can be applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.
General specifiation
| Step Angle | 1.8° |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃ Max∼+50℃ |
| Insulation Resistance | 100M ΩMin.,500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Asial Force | 60N |
Electrical Specification:
| Model No | Step Angle(°) | Rated Voltage(V) | Rated Current (A) | Phase Resistance(Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm²) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 86HS65-3004 | 1.8 | 3.3 | 3 | 1.1 | 6.5 | 28 | 800 | 1000 | 65 | 4 | 1.7 |
| 86HS68-4004 | 1.8 | 1.3 | 4 | 0.33 | 1.6 | 35 | 1000 | 1200 | 68 | 4 | 1.7 |
| 86HS78-4004 | 1.8 | 1.5 | 4 | 0.38 | 2.5 | 35 | 1200 | 1400 | 78 | 4 | 2.3 |
| 87HS78-4204 | 1.8 | 1.9 | 4.2 | 0.45 | 4 | 45 | 1200 | 1400 | 78 | 4 | 2.3 |
| 87HS78-6008 | 1.8 | 3.0 | 6 | 0.5 | 4 | 45 | 1200 | 1400 | 78 | 8 | 2.3 |
| 86HS82-4504 | 1.8 | 1.4 | 4.5 | 0.32 | 2.8 | 45 | 1300 | 1500 | 82 | 4 | 2.5 |
| 86HS82-5608 | 1.8 | 2.0 | 5.6 | 0.35 | 3 | 50 | 1300 | 1500 | 82 | 8 | 2.5 |
| 86HS100-5004 | 1.8 | 2.5 | 5 | 0.5 | 4 | 68 | 2000 | 2100 | 100 | 4 | 3.2 |
| 86HS100-5008 | 1.8 | 2.5 | 5 | 0.5 | 4 | 65 | 2000 | 2100 | 100 | 8 | 3.2 |
| 86HS118-6004 | 1.8 | 3.6 | 6 | 0.6 | 6 | 85 | 2400 | 2700 | 118 | 4 | 3.7 |
| 86HS118-5608 | 1.8 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2400 | 2700 | 156 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 9 | 120 | 3600 | 4000 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 9 | 122 | 3600 | 4000 | 156 | 8 | 5.5 |
| Above only for representative products,products of special request can be made according to the customer request. |
Dimensions: Wiring Diagram:
(Unit=mm)
L1 and L2 canbe customized according to customers' requirements.
A wide range of application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
