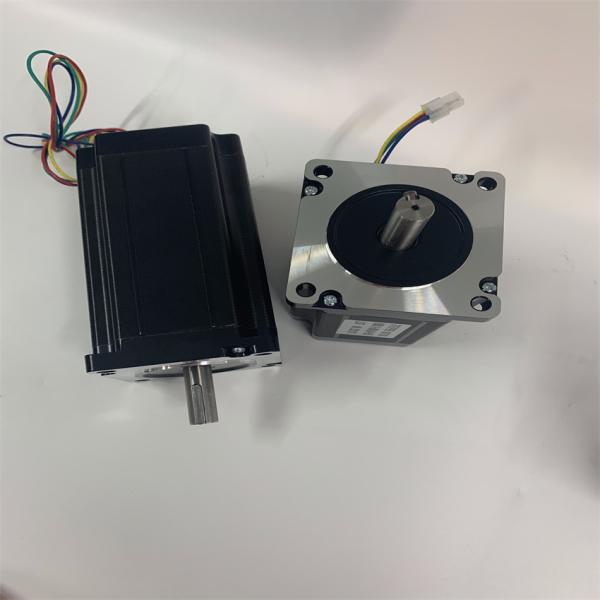

Engraving Machine Used 8nm 86HS118-6004 Nema 34 Stepper Motor 2 Phase Hybrid Stepper Motor
On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by JSS people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.
our main products:
hybrid stepper motor and drives
Brushless DC motor and drives
planetary gearbox
AC servo motor
Spindle motor
Linear guide and its pairs
Ball screw and its pairs
General specifiation
| Step Angle | 1.8° |
| Temperature Rise | 80℃ Max |
| Ambient Temperature | -20℃ Max∼+50℃ |
| Insulation Resistance | 100M ΩMin.,500VDC |
| Dielectric Strength | 500VAC for 1 minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |
| Max. Radial Force | 220N (20mm from the flange) |
| Max. Asial Force | 60N |
Electrical Specification:
| Model No | Step Angle() | Rated Voltage(V) | Rated Current (A) | Phase Resistance() | Phase Inductance (mH) | Holding Torque (Kg.cm) | Detent Torque (g.cm Max) | Rotor Inertia (g.cm) | Motor Length (mm) | Leads No. | Motor Weight(Kg) |
| 86HS118-6004 | 1.8 | 3.6 | 6 | 0.6 | 6 | 85 | 2400 | 2700 | 118 | 4 | 3.7 |
| 86HS118-5608 | 1.8 | 3.4 | 5.6 | 0.6 | 6 | 85 | 2400 | 2700 | 156 | 8 | 3.7 |
| 86HS156-5504 | 1.8 | 3.9 | 5.5 | 0.7 | 9 | 120 | 3600 | 4000 | 156 | 4 | 5.5 |
| 86HS156-6204 | 1.8 | 3.6 | 6.2 | 0.75 | 9 | 122 | 3600 | 4000 | 156 | 8 | 5.5 |
| Above only for representative products,products of special request can be made according to the customer request. |
Dimensions: Wiring Diagram:
(Unit=mm)
L1 and L2 canbe customized according to customers' requirements.
application:
Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.
Product Tags:
|
|
High Torque Nema 34 Stepper Motor 85 KgCm With Dm860a2 Driver 86hs118-6004 Images
|
