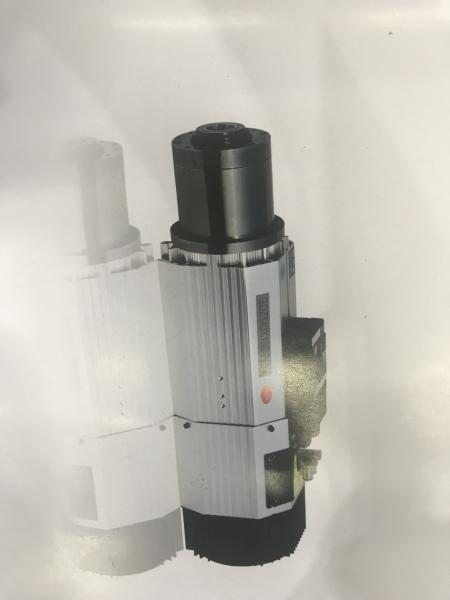

Air-cooled Automatic Tool change Spindle motor high precision GDZ143*133-9 380v 9kw ISO30 800HZ
Air- cooled Series-Automatic Tool change Spindle Motor
| TYPE | speed (rpm) | power(kw) | voltage (V) | current (A) | frequency (HZ) | collect | Bearing type | Weight(kg) |
| | | |
| | GDZ120*103-4.5ATC | 24000 | 4.5 | 380 | 11 | 800 | ISO30 | 7008 | 7006 | 2 pcs | 21 |
| GDZ120*103-7.5ATC | 24000 | 7.5 | 380 | 15 | 600 | ISO30 | 7008 | 7006 | 2 pcs | 26 |

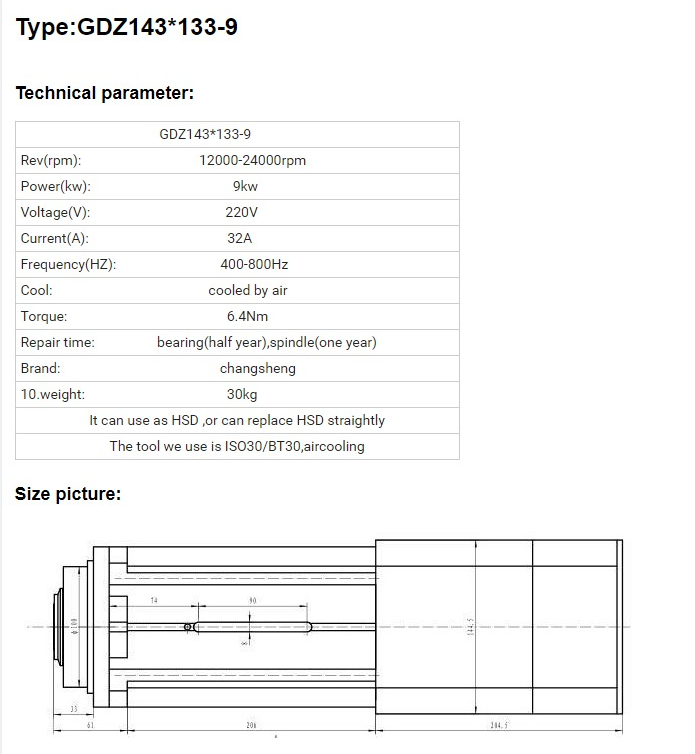

| GDZ143*133-9.0 | 24000 | 9 | 380 | 18 | 800 | ISO30 | 7008 | 7006 | 2pcs | 31 |
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life
1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
Company Information
Our main products include from size NEMA 8 to NEMA 42 series hybrid stepper motor, Spindle Motor and variable sizes linear stepper motor, stepper motor with gear box, stepper motor with brake and spindle motor . And by now we have new products about closed loop systems for nema 23, nema 24 and nema 34 sizes. In addition, we can produce suitable drivers for all the motors. And we always research and develop new products.
