3000rpm Brushless Dc Motor 86mm 4.2NM 440W 48V

Changzhou Jinsanshi Mechatronics Co., Ltd
Contact Now

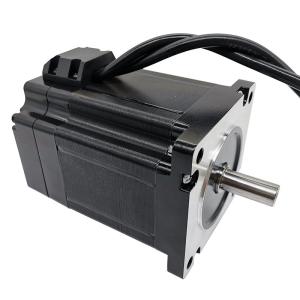

3000rpm Brushless Dc Motor 86mm 4.2NM 440W 48V

  • 1
  • 2

Brand Name : JSS

Model Number : 86BL120-430

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000pcs/week

Delivery Time : 25days

Packaging Details : Cartoon box

Name : 86MM Brushless Dc Motor

Rated Voltage : 48VDC

Rated Current : 12A

Rated power : 440W

Rated torque : 1.4N.M

Peak torque : 4.2N.M

Rated Speed : 3000rpm

Motor Length : 117MM

Motor Weight : 2.5Kg

Type : Brushless DC Motor

Application : Home application

Contact Now

Industrial 86mm Brushless Dc Motor Flange 440W 48Vdc 3000rpm
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.

our main products:

hybrid stepper motor and drives

Brushless DC motor and drives

planetary gearbox

AC servo motor

Spindle motor

Linear guide and its pairs

Ball screw and its pairs

General specification:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.025mm
Radial play 0.02mm/50g
End play 0.08mm/50g
Max radial force 220N/20mm from the flange
Max axial force 60N
Insulation class Class B
IP class IP 40
Dielectric strength 500VDC for one minute
Insulation Resistance 100MΩmin 500VDC

Electrical Specification:

Model Rated Voltage(VDC) Rated Current(A) Rated Power(W) Rated Torque(N.m) Peak Torque(N.m) Rated Speed(rpm) Length(mm) Mass(kg)
86BL90-430 48 6 220 0.7 2.1 3000 90 1.8
86BL120-430 48 12 440 1.4 4.2 3000 117 2.4
86BL140-430 48 18 660 2.1 6.3 3000 144 3.8
86BL90-640 310 1.3 293 0.7 2.1 4000 90 1.8
86BL120-640 310 2.5 586 1.4 4.2 4000 117 2.4
86BL140-640 310 3.8 879 2.1 6.3 4000 144 3.8

Electrical Connection:

Lead No. Lead Color Lead Gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/20AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Wiring diagram:

3000rpm Brushless Dc Motor 86mm 4.2NM 440W 48V

Dimensions:

(Unit=mm)

3000rpm Brushless Dc Motor 86mm 4.2NM 440W 48V
