86HS156-5504 Nema 34 12nm High Torque Stepper Motor And Driver 1200 Oz-In 5.5A 14mm Shaft 24-80VDC

Brand Name : JSS-MOTOR

Model Number : 86HS156-5504

Certification : CE, RoHS, ISO9001

Place of Origin : China

MOQ : 1PCS

Price : negotable

Payment Terms : T/T, Western Union，credit card, paypal

Supply Ability : 50000pcs/month

Delivery Time : 1-15days

Packaging Details : cartons

name : NEMA 34 stepper motor

phase NO. : 2

step angle : 1.8°

phase current : 5.5A

phase voltage : 3.9VDC

phase resistance : 0.7Ω

phase inductance : 9mH

holding torque : 120kg.cm

motor length : 156mm

lead wires : 4

weight : 5.5kg

Contact Now

nema 34 stepper motor 5.5A 12N.m 14mm shaft and stepper driver 24-80VDC

Product Description

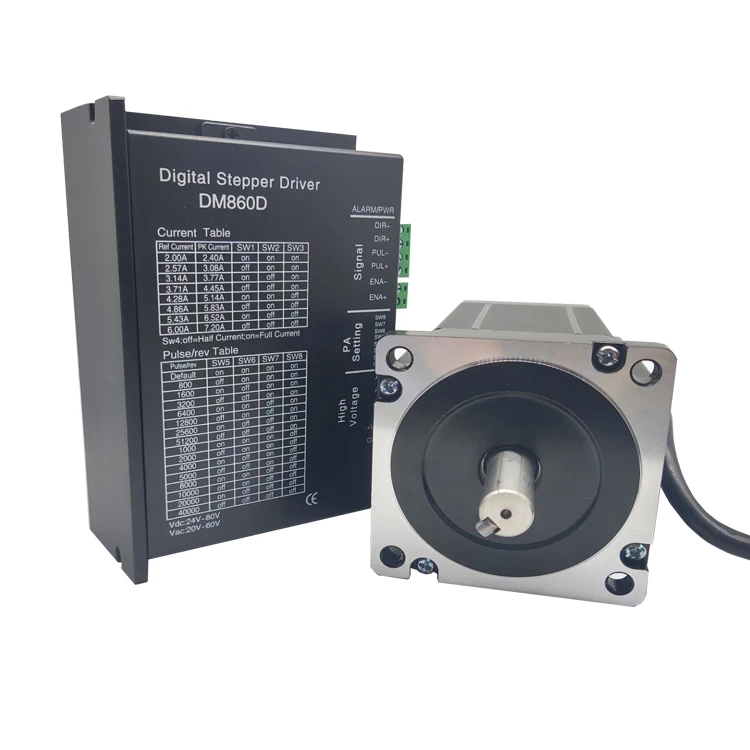

86HS156-5504 Nema 34 12nm High Torque Stepper Motor And Driver 1200 Oz-In 5.5A 14mm Shaft 24-80VDC

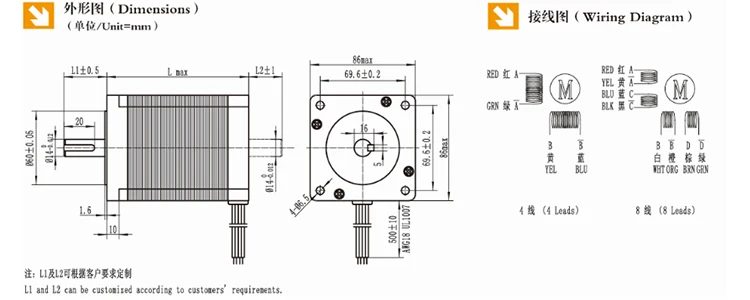

2-PHASE (1.8°) NEMA 34 STEPPER MOTOR
Motor Length
156mm
Motor shaft diameter
14mm
Torque
12N
Motor shaft length
35mm
Lead Wires NO.
4 wire
Feature
Using high temperature copper coil
86HS156-5504 Nema 34 12nm High Torque Stepper Motor And Driver 1200 Oz-In 5.5A 14mm Shaft 24-80VDC
The motor is made of high-quality silicon steel material with high magnetic permeability and large resistance coefficient. The motor coil is made of pure copper enameled wire. The advanced winding process makes the copper wire evenly arranged, the motor temperature rise is lower, and the deformation problem will not occur for a long time.
86HS156-5504 Nema 34 12nm High Torque Stepper Motor And Driver 1200 Oz-In 5.5A 14mm Shaft 24-80VDC
FEATURES
1. Adoption of 32-bit DSP, pure sine wave subdivision technology
2. Low-noise, low-vibration and low temperature rising
3. Voltage 24-80VDC,or 20-60VAC
4. With 8 stalls output current setting, peak current 7.2A
5. With16 stalls microstep subdivision setting
6. Automatic half current, self-test, over voltage, under voltage, over current protection
7. Internal optical isolation, highest frequency response 200KHZ.
8. Suitable for current range 2.4-7.2A 2,4-phase nema23, nema34 Hybird stepper motor

Current selection

REF Peak SW1 SW2 SW3
2.00A 2.40A ON ON ON
2.57A 3.08A OFF ON ON
3.14A 3.77A ON OFF ON
3.71A 4.45A OFF OFF ON
4.28A 5.14A ON ON OFF
4.86A 5.83A OFF ON OFF
5.43A 6.52A ON OFF OFF
6.00A 7.20A OFF OFF OFF

Microstep Selection

Pulse/REV SW5 SW6 SW7 SW8
Default ON ON ON ON
800 OFF ON ON ON
1600 ON OFF ON ON
3200 OFF OFF ON ON
6400 ON ON OFF ON
12800 OFF ON OFF ON
25600 ON OFF OFF ON
51200 OFF OFF OFF ON
1000 ON ON ON OFF
2000 OFF ON ON OFF
4000 ON OFF ON OFF
5000 OFF OFF ON OFF
8000 ON ON OFF OFF
10000 OFF ON OFF OFF
20000 ON OFF OFF OFF
40000 OFF OFF OFF OFF

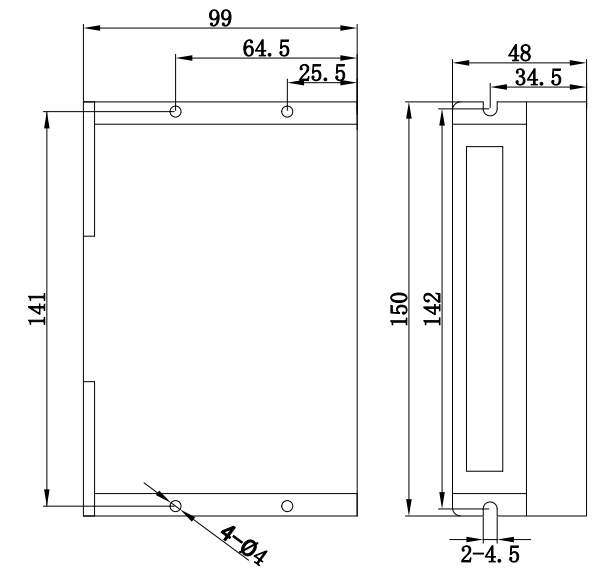

Driver Dimension:

86HS156-5504 Nema 34 12nm High Torque Stepper Motor And Driver 1200 Oz-In 5.5A 14mm Shaft 24-80VDC
